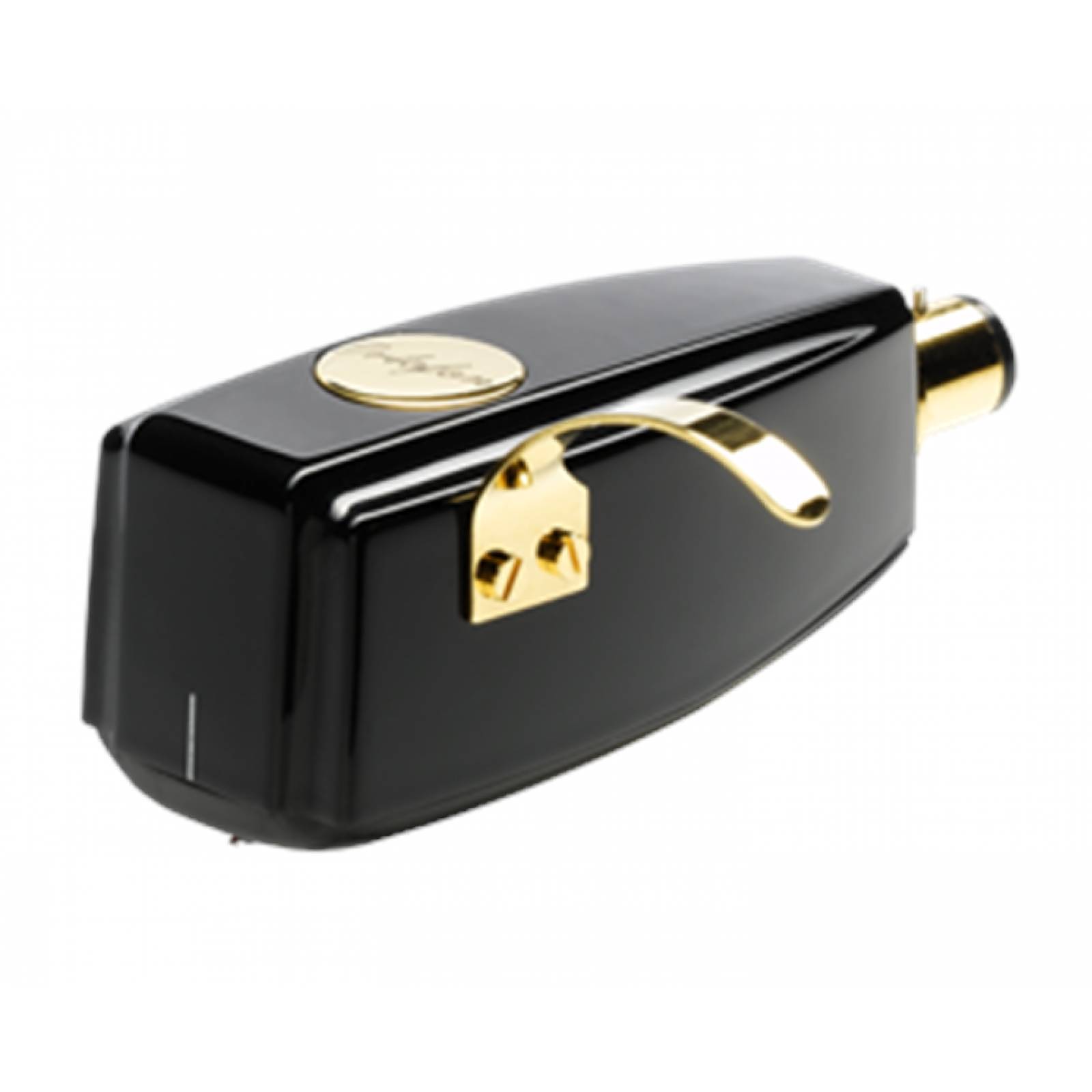

Ortofon Fonocaptor Ortofon SPU Synergy GM

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems. While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability. Output voltage at 1000 Hz, 5cm/sec. - 0.5 mV Channel balance at 1 kHz  23 dB Channel separation at 15 kHz  > 15 dB Frequency response - 20-20.000 Hz ± 2 dB Tracking ability at 315Hz at recommended tracking force *) > 70 µm Compliance, dynamic, lateral - 8 µm/mN Stylus type - Nude elliptical Stylus tip radius - r/R 8/18 µm Tracking force range - 2.5-3.5 g (25-35 mN) Tracking force, recommended - 3.0 g (30 mN) Tracking angle - 20° *) Typical value Internal impedance, DC resistance - 2 ohm Recommended load impedance - 10 - 50 ohm Cartridge body material - Ground wood and resin composite Coilwire material - High Purity Copper (OFC) Cartridge colour - Shiny Black Cartridge weight - 30 g
