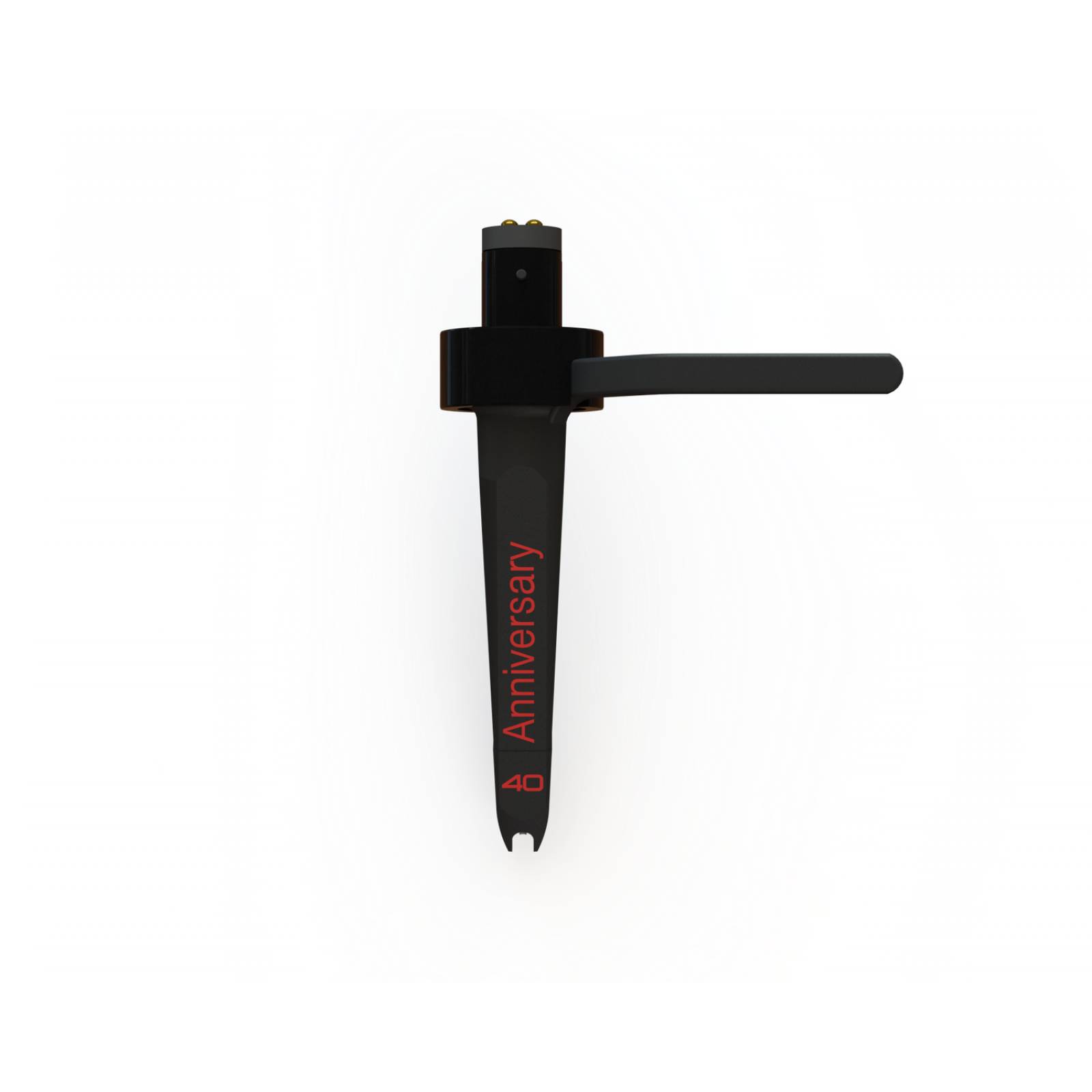

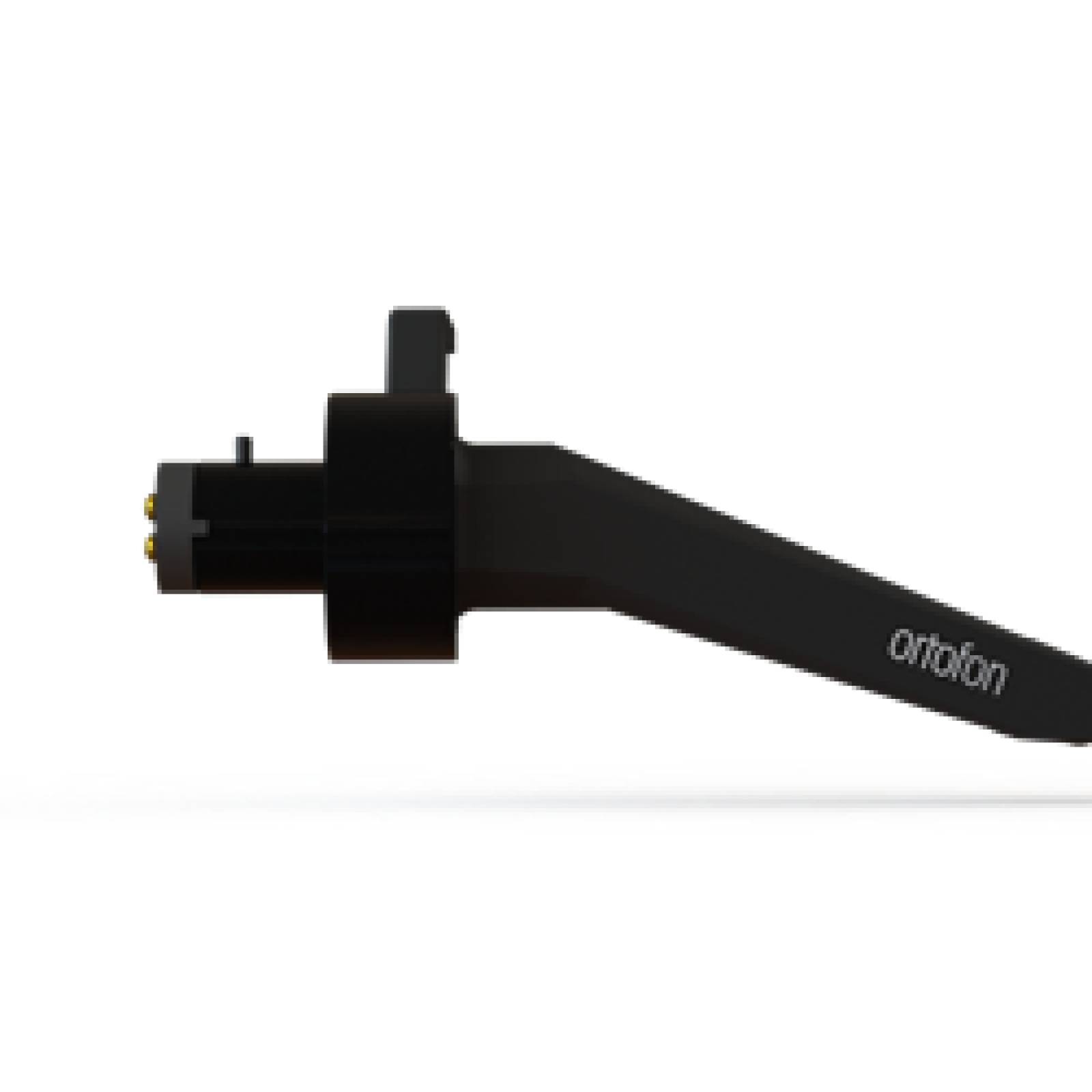

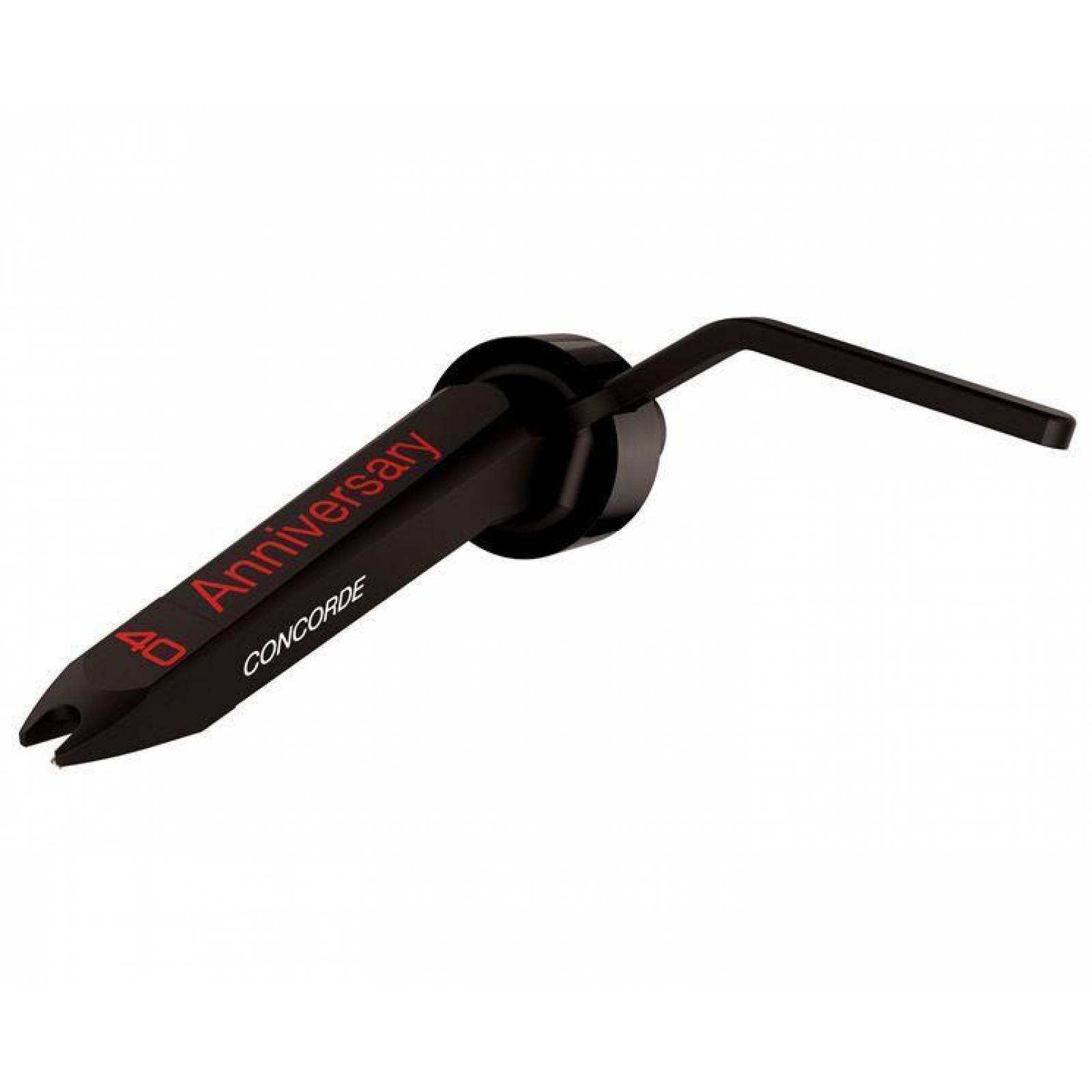

Ortofon Fonocaptor Ortofon Concorde Anniversary 40

Output voltage at 1000 Hz, 5cm/sec.  -  5.5 mV Channel balance at 1 kHz  -  1.5 dB Channel separation at 1 kHz  -  25 dB Channel separation at 15 kHz  -  15 dB Frequency range at - 3dB  -  20-25.000 Hz Frequency response  -  20-20.000 + 2 / - 1 dB Tracking ability at 315Hz at recommended tracking force  -  80 µm Compliance, dynamic, lateral  -  20 µm/mN Stylus type  -  Nude Elliptical Stylus tip radius  -   r/R 8/18 µm Tracking force range  -  1.6-2.0g (16-20 mN) Tracking force, recommended  -  1.8 g (18 mN) Tracking angle  -  20° Internal impedance, DC resistance  -  1,3 kOhm Internal inductance  -  700 mH Recommended load resistance  - 47 kOhm Recommended load capacitance  -  150-300 pF Cartridge colour, body/stylus  - Black/Black Cartridge weight  -   18.5 g Replacement stylus unit  -  40 Anniversary  The Concorde 40 Anniversary uses the 2M Blue improved engine, which provides an increased output of 5.5 mV with a full-range reproduction and a high level of sonic accuracy. The sound is open, balanced, dynamic and detailed. Features:   Nude Elliptical diamond and split pole pins with a copper wire. The   Concorde 40 Anniversary has an intergated cartridge and headshell desing and is f or direct and easy mounting and replacement on S-shaped tonearms   with universal/SME connector, such as e.g.   Ortofon TA-110.
